HEAT LOAD CALCULATION
Heat Load Calculation


The heat load calculation is a very important part of the design.

Well, heat load calculation is nothing but finding out the amount of heat present in an area which is to be air-conditioned.

Basically, if we want to repair any staff it is necessary to identify and convert it into excel to plan accordingly.

In the same way, we calculate the amount of heat present in a space which is to be designed.

Basically, heat which is present in the room are of two types

  • Types of Heat in Heat Load Calculation
  1. Sensible heat
  2. Latent heat


Basically, we need to calculate this both and we are done with it.

Let us find out What is heat giving body ……

Heat giving object in Heat Load Calculation:

Heat giving object



Well as we know what is the source through we get heat now let's classify it by sensible and latent heat.

HEAT GIVING OBJECTS CATEGORISED IN Heat Load Calculation


HEAT GIVING OBJECTS CATEGORISED


Well as we classified it, now we need to find out how much amount of heat does it emit so let's find the steps to calculate the heat.


Overview of heat load calculation

1.     Geographical condition

2.     Ambient Condition

3.     Transmission coefficient (U value)

4.     Temp diff (∆T)

5.     Complete building information.

6.     Internal sensible heat (ISH)

7.     External sensible heat (ESH)

8.     Total sensible heat

9.     Latent Heat

10. Total latent heat

11. Effective room sensible heat (ERSH)

12. Effective room latent heat (ERLH)

13. Effective room total heat (ERTH)

14. Load at the cooling coil

15. Grand total heat (GTH)

16. Effective sensible heat factor (ESHF)

17. Apparatus dew point temp. (ADP)

18. Dehumidified rise (DR)

19. Dehumidified (CFM)

 Friends, there are basically 19 steps we need to follow to obtain the amount of heat present in the space to be conditioned.

well, this a manual method through which we can find how much Ton of air conditioner required to overcome the heat load.


STEP 1     GEOGRAPHICAL CONDITION IN HEAT LOAD CALCULATION:

1.Location: Mumbai
2.Building Application: Residence
3.Floor to floor height:12 feet
4. False ceiling height:9 feet
5.Longitude:19.0760°North
6. Latitude:18.54°North
7. Altitude:11 Metre
8. Orientation: N,S,E,W

well, it is necessary to find the details of geographical condition and the data of the area which is to be conditioned.



AMBIENT CONDITION


PG-68
AMBIENT CONDITION
PG-69

This is the outside Design Data information for India which is refereed from ISHRAE handbook.

STEP 2    AMBIENT CONDITION IN HEAT LOAD CALCULATION:




DBT°F
WBT°F
RH %
HR
Daily range
Outside
95
83
60
154
12
Inside
75
62.8
50
66


∆T=20°F


∆HR=88Grains/pound


Outside DBT, WBT, RH, Daily range is taken from PG-68 & 69.
Inside DBT & RH % is as per comfort DBT-75°F & RH-50%, WBT and HR of inside as well as of outside is taken from the psychometric chart.

Correction factor- PG 83
 Correction factor for Mumbai location with a daily range of 12 and ∆T which is 20°F = 9°F.


AMBIENT CONDITION
PG-83


STEP 3    TRANSMISSION FACTOR (U-VALUE) IN HEAT LOAD CALCULATION:

The amount of heat transfer through 1 sq.ft area at 1°F.

 The temperature difference is known as transmission co-efficient.

UNIT- BTU/hr.sq.ft°F

Q= U X Area of the wall X ∆T.

Where Q= Heat = BTU/Hr

U= Resistivity factor = BTU/Hr.sq.ft° F

A= area of the wall in sq.ft.

∆T= Temp diff in °F

Transmission Coefficient (U-value)


R1

R2

R3

R4

R5

R6

R7
Paint                 POP                 Cement          Wall                   Cement          POP                 Paint

U- Value = 1/R1+R2+R3+R4+R5+R6+R7

 To find a transmission for


1.     Wall
2.     Partition
3.     Roof/Ceiling
4.     Floor
5.     Glass



Material

Specification

U-value
(BTU/HR.SQ.FT.°F)

WALL (PG-92)
Solid brick (commonly only) of thickness 12’’ with 3/8 of plaster
On sand aggregate (weight 120).

0.30


PARTITION (PG-95)
4’’ Face brick veneer, ½’’ insulating board, No interior finish.

0.38


ROOF/ CEILING (PG-97)
Concrete sand and gravel aggregates with 8’’ thickness suspended plaster of ½’’ (weight 93 lb/sq.ft)

0.20


FLOOR (PG-99)
Floor tile sand aggregates of 8’’ thickness with ½’’ lightweight plaster (weight 82 lb/sq.ft)

0.25

GLASS (PG-100)
TRANSMISSION
DOUBLE PLANE, VERTICAL GLASS, AIR SPACE THICKNESS ½’’ WITHOUT STORM WINDOWS

0.55

GLASS (PG-90)
RADIATION (SOLAR HEAT GAIN FACTOR)
ORDINARY GLASS INSIDE VENETIAN BLIND MEDIUM COLOUR

0.65

depending on the building construction material data used in walls, floors, roof .ceilings, glass etc u value is been chosen with the following data from Israel.

TRANSMISSION FACTOR (U-VALUE)
PG-92
TRANSMISSION FACTOR (U-VALUE)
PG-95

TRANSMISSION FACTOR (U-VALUE)
PG-97

TRANSMISSION FACTOR (U-VALUE)
PG-99

TRANSMISSION FACTOR (U-VALUE)
PG-100
TRANSMISSION FACTOR (U-VALUE)
PG-90


STEP 4    Temperature Difference (∆T) in heat load calculation

Find temperature difference for,
1.     Partition

2.     Floor

3.     Ceiling

4.     Wall

5.     Roof

6.     Glass (Transmission)

7.     Glass (Radiation)

Temperature Difference (∆T)

MATERIAL
Non AC & AC
∆T


Partition (partition are room which is connected to the room which is to be conditioned)

If the room beside is having AC than ∆T will be 0.
1.     Non AC
=((outside temperature-5)-75°F)
=((95-5)-75)

2.     AC
=75-75
15°F




0°F


FLOOR
1.     Non AC
=((outside temperature-5)-75°F)
=((95-5)-75)

2.     AC
             =75-75
15°F




0°F
CEILING
1.     Non AC
=((outside temperature-5)-75°F)
=((95-5)-75)

2.     AC
  =75-75
15°F




0°F



MATERIAL
DIRECTIONS (A)
CORRECTION FACTOR (B)
∆T (A+B)
Wall (PG 82), weight of wall = 120 lb/sq.ft
N-3
S-13
E-18
W-11
9
9
9
9
12
22
27
20

MATERIAL
DESCRIPTION (A)
CORRECTION FACTOR (B)
∆T (A+B)
ROOF (PG-83)
Exposed to sun, 80 weight at 4 pm
(32)

9


41


GLASS
(TRANSMISSION)
Outside-Inside
95°F-75°F


20°F
GLASS (RADIATION)
(PG 77-81)
Solar heat gain factor for each direction

N-23
S-12
E-12
W-163


Temperature Difference (∆T)
PG-82

Temperature Difference (∆T)
PG-83


Temperature Difference (∆T)
PG-77


Temperature Difference (∆T)
PG-78


Temperature Difference (∆T)
PG-79


Temperature Difference (∆T)
PG-80


Temperature Difference (∆T)

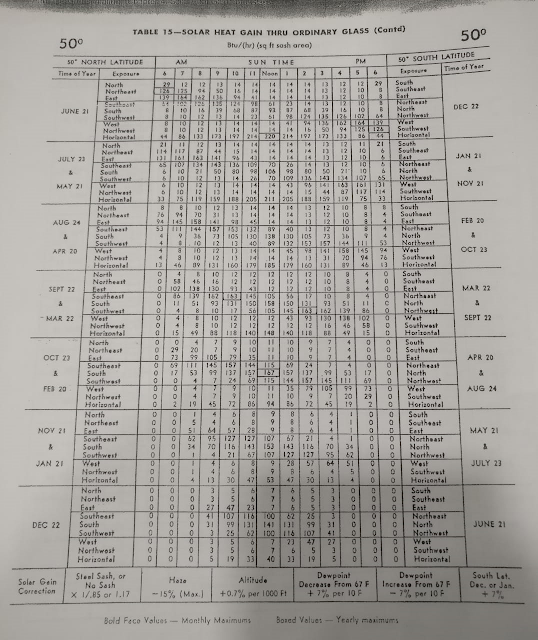

PG-81

Step-05 Complete Building Information:


FLOOR
FLAT NO
ROOM
LENGTH

WIDTH
HEIGHT
AREA
VOLUME
PEOPLE
TR
CFM




































Step-06 INTERNAL SENSIBLE HEAT IN HEAT LOAD CALCULATION(ISH):



INTERNAL SENSIBLE HEAT (ISH):


This is the heat which is present in the equipment

A.   Light (Qlighting)
For residential- 1 to 1.25 watt/sq.ft.
For commercial- 1.25 to 1.50 watt/sq.ft.
For industrial -1.5 to 4 watt/sq.ft.

Q light= (Watt /sq.ft) X (room area in sq.ft)

But 1 watt =3.415 BTU/hr

B.    Equipment (Q Equipment)

For Reidential :- 0.5 watt/sq.ft
For commercial- 0.5 to 0.73 watt/sq.ft.
For industrial -From clients (watt/sq.ft)

Q equipments= (watt/sq.ft) X (room area in sq.ft)

But 1 watt =3.415 BTU/hr


C.    People (Q people) (PG-84)

Q people = Number of people X (Sensible heat/persons)

From pg 84 Sensible heat per person = 245. for 75 degrees f.
INTERNAL SENSIBLE HEAT (ISH)



D.   Floor (Q floor)
CASE 1. If below floor is Non-AC.

Q floor = U X A X ∆T

CASE 2. If below floor is AC.

∆T = 0
Q floor = U X A X ∆T
Q floor = 0

E.    Ceiling (Q ceiling)

CASE 1. If the above floor is Non-AC.

Q ceiling = U X A X ∆T

CASE 2. If the above floor is AC.

Q ceiling = U X A X ∆T, than ∆T=0.


F.     Partition
Case 1.If another side of the partition is non Ac.

Q Partition = U X A X ∆T

Case 1.If another side of the partition is Ac.

Q Partition = U X A X ∆T, than ∆T=0.

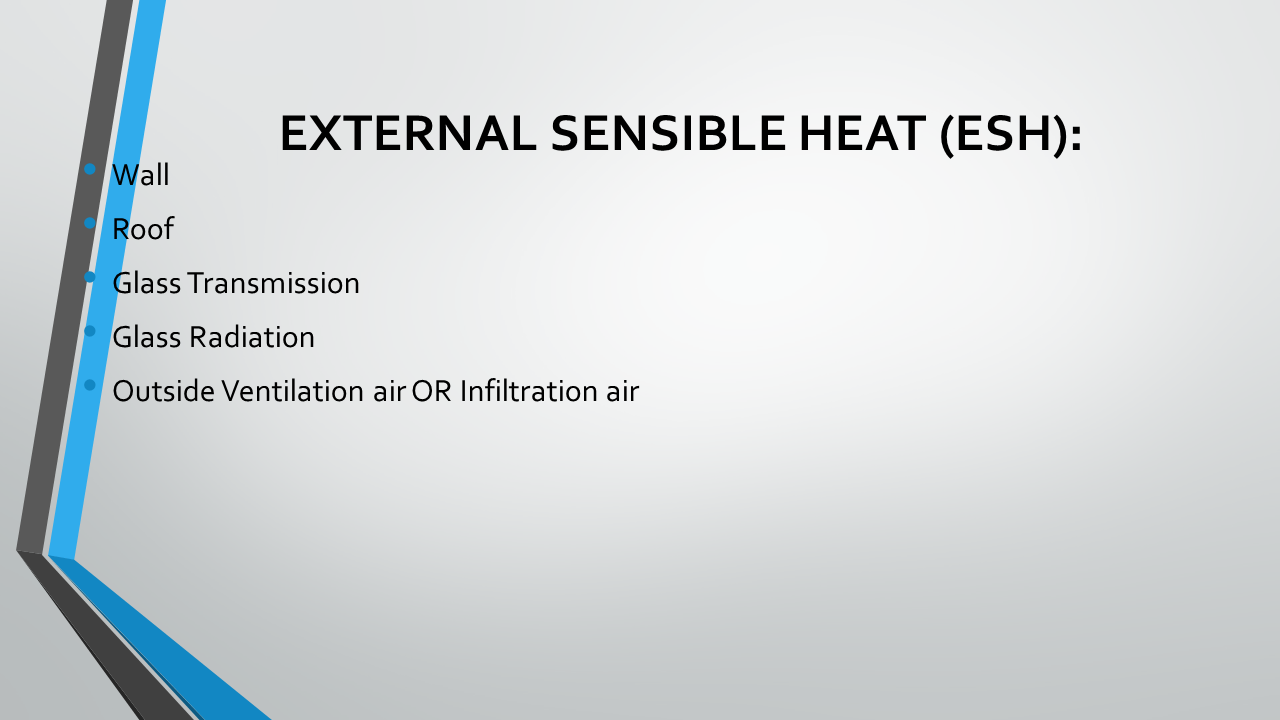

Step-07 EXTERNAL SENSIBLE HEAT (ESH) IN HEAT LAID CALCULATION:

EXTERNAL SENSIBLE HEAT (ESH):



  •    Wall

Q  = U X A X ∆T   (Area -E,W,N,S),( ∆T   - E,W,N,S)
If there is glass in the wall than A wall (Total area of wall-Area of the window).


  •    Roof

Q  = U X A X ∆T

  •     Glass

Q  = U X A X ∆T

Transmission: Q  = U X A X ∆T(NOTE: Take U from step 3 depending upon the type of glass used (pg no. and for transmission consider   the window as ∆T, will not vary i.e Q (glass transmission E, W, S, N)= U X Sum of Area of window E, W, S, N x ∆T

Radiation : Q  = U X A X ∆T (NOTE: Take U from step 3 and for Radiation consider   the window  ∆T will vary for each direction,  i.e Q (glass radiation E,W,S,N)= U X Sum of Area of window E,W,S,N x ∆T of window E,W,S,N.

Total External sensible heat of the glass


Q  Glass total= Q glass transmission + Q glass radiation

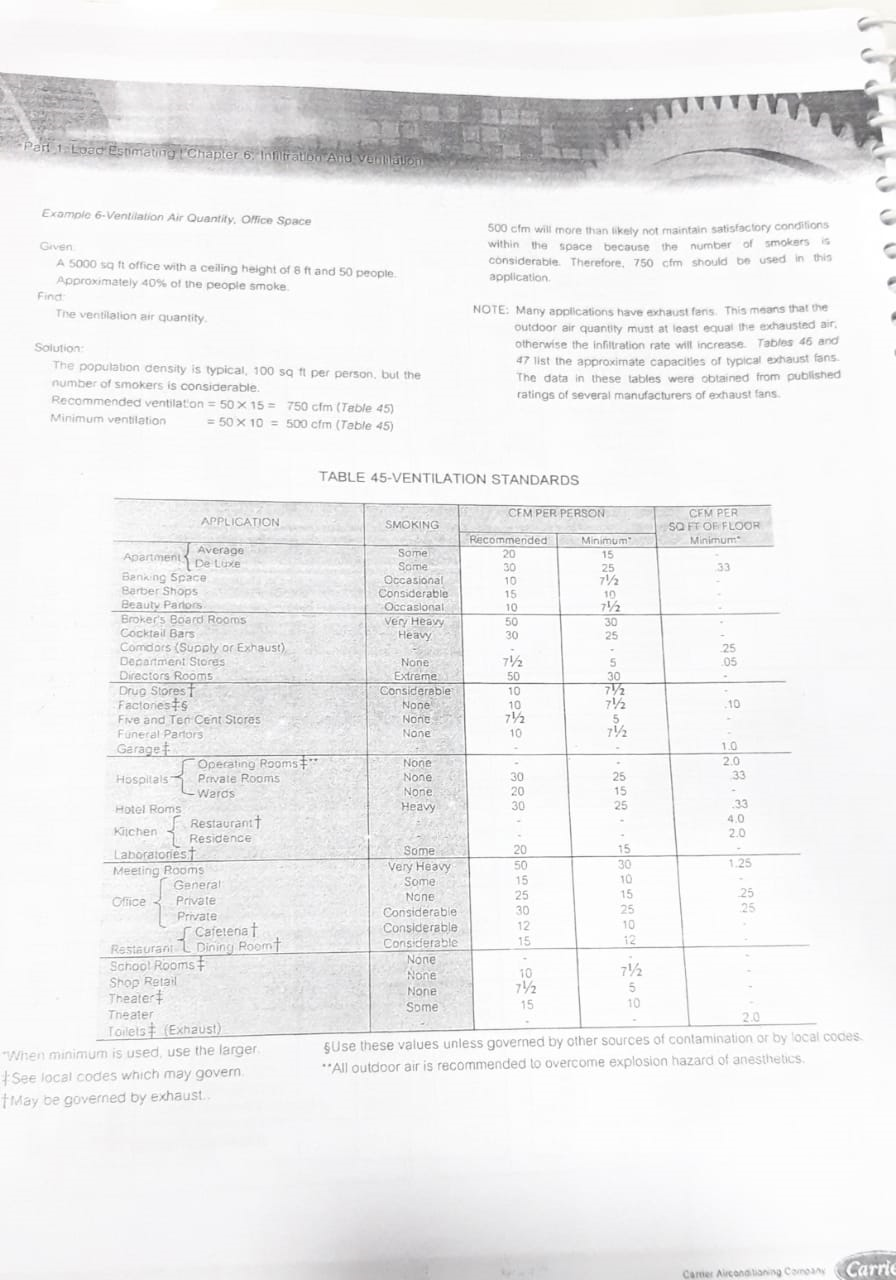

D.   Outside air (PG:73)
Q  Glass total= Q glass transmission + Q glass radiation
PG 73.

1.     According to people
30CFM per person
=No. of person x CFM per person( PG:73)


2.     According to Area
0.33CFM per person
=CFM per sq.ft. ( PG:73) x Floor area



3.     According to Volume
Room volume x NACPH

Number of an air change per hour (NACPH)
1.     Residential:1 to 3
2.     Commercial:3 to 7
3.     Industrail:7 and above

Bypass factor(Page 84)


BPF=0.30( For residential)

Sensible Heat Constant

The sensible heat gain through 1 CFM of air with 1°F ∆T.

SHC =1.08BTU/hr CFM °F

Q outside =SHC X Bypass factor x outside air CFM x ∆T

E.    Infiltration air
Q Infiltration Air=Sensible heat constant x CFM /feet x Length ( consider 1)x ∆T(outside -inside temp)

Infiltration std (In CFM)

Residential -1 to 3
Commercial-3 to 7
Industrial-7 and above

Step-08 TOTAL  SENSIBLE HEAT (TSH)

IN HEAT LAID CALCULATION

:

TOTAL  SENSIBLE HEAT (TSH):

TSH =Internal sensible heat + external sensible heat


Step-09 LATENT HEAT (LH)


1.PEOPLE (PG 84)
Latent heat generated by per person =205 BTU/hr

Q People =LH/. Person  X NO. Person

2.Outside
Latent heat constant
The heat generated by 1 CFM OF Air when 1 GR per pound difference
LHC =0.68 BTU/hr CFM Grains per pound

Q Outside =LHC x bypass factor x max. CFM x ∆HR(step 2)

3.Infiltration
Q infiltration = LHC X (CFM /FT. x length) x ∆HR


Step-10 TOTAL LATENT HEAT (TLH)

IN HEAT LAID CALCULATION


Q total latent heat =Q PEOPLE +Q OUTSIDE +Q INFILTRATION


Step-11 EFFECTIVE ROOM SENSIBLE  HEAT (ERSH)

IN HEAT LAID CALCULATION

EFFECTIVE ROOM SENSIBLE  HEAT (ERSH)

ERSH=Total sensible heat + factor of safety x total sensible heat
FOS =10 TO 15 %

Step-12 EFFECTIVE ROOM LATENT  HEAT (ERLH)

IN HEAT LAID CALCULATION


EFFECTIVE ROOM LATENT  HEAT (ERLH)

ERLH=Total Latent heat + factor of safety x total latent heat
FOS = 2.5 TO 5 %

Step-13 EFFECTIVE ROOM TOTAL HEAT (ERTH)

IN HEAT LAID CALCULATION


EFFECTIVE ROOM TOTAL HEAT (ERTH)

EFFECTIVE ROOM TOTAL HEAT = EFFECTIVE ROOM SENSIBLE HEAT + EFFECTIVE ROOM LATENT HEAT
ERTH = ERSH + ERLH

Step-14 LOAD AT COOLING COIL

IN HEAT LAID CALCULATION


LOAD AT COOLING COIL


Contact factor = 1 – Bypass Factor
                             = 1 – 0.30
                              = 0.70

        Q coil sensible = Sensible heat constant X contact factor X outside air x ∆T.
B.    Q coil latent =  Latent heat constant X contact factor X outside air x ∆HR.
TOTAL LOAD AT COOLING COIL
Q Total coil = Q coil sensible + Q coil latent

Step 15: Grand total heat IN HEAT LAID CALCULATION:

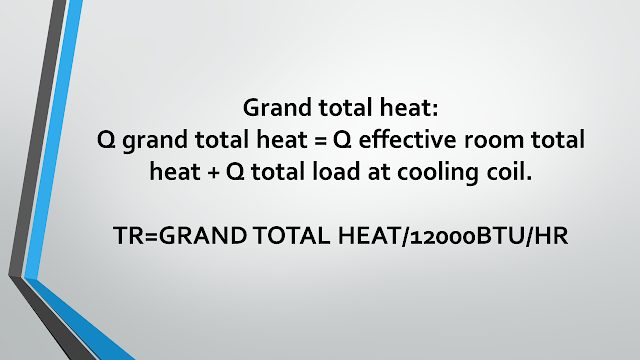

Q grand total heat = Q effective room total heat + Q total load at the cooling coil.
 1 TR = 12000 Btu/hr


Step  16: Effective sensible heat factor (ESHF) in heat load calculation


Effective sensible heat factor (ESHF)

ESHF = Effective room sensible heat / Effective room total heat

Step 17: Apparatus dew point temperature (PG 87 to 89)

Dry Bulb temperature = 75°F
Relative humidity = 50%
Effective sensible heat factor = 0.67
ADPT = 44°F
NOTE: To maintain the comfort level.

HEAT LOAD CALCULATION
PG-87

HEAT LOAD CALCULATION
PG-88

HEAT LOAD CALCULATION
PG-89


Step 18: The dehumidified rise in heat load calculation

Dehumidified rise

Dehumidified rise = Contact Factor X (Room temperature – ADP)
Note- Increase in temperature will decrease in moisture level.

Step 19: Dehumidified CFM

Dehumidified CFM


Dehumidified CFM = Effective room sensible heat / sensible heat constant X dehumidified rise

NOTE- TO maintain 75°F how much CFM needs to be added to get rid of dehumidified rise.

Cross check
CFM/TR < 400 CFM


well, this is the steps which will help you out to determine the heat load of the space.

This is quite lengthy but it is the foundation through which we can determine what we want to.

Heat load calculation can be also determined by different software but before that, it is necessary to know all the steps to be a good designer.


Post a Comment

0 Comments
